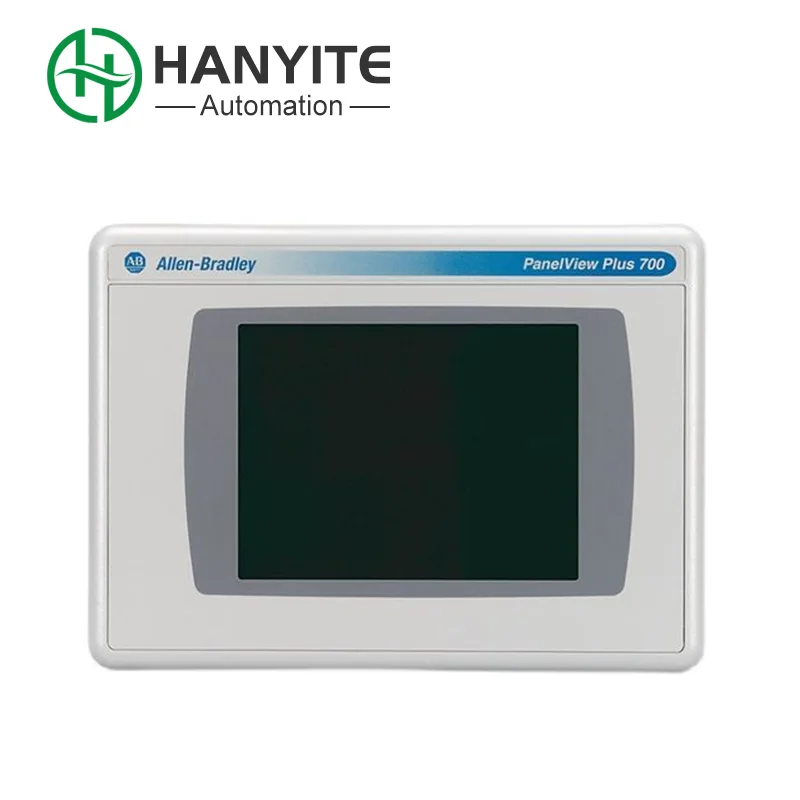

At Hanyite Automation Technology, we not only provide you with high-performance Allen Bradley 2711-T5A20L1 operator terminal equipment, but also provide you with a very competitive price and perfect after-sales service, so that you can have no worries. It is designed to provide operators with an intuitive and easy-to-use interactive interface to achieve real-time monitoring and precise control of industrial equipment. If you are interested in our products and services, please feel free to consult us immediately. We will be happy to answer your questions and provide the most timely support!
| Module |
Allen Bradley 2711-T5A20L1 |
|
Display |
5.5-inch Monochrome STN LCD |
|
|
Resolution: 320 × 240 pixels (QVGA) |
|
|
Grayscale: 16 levels |
|
Input Method |
Analog Resistive Touchscreen |
|
|
Supports stylus operation |
|
Power Supply |
18-32 VDC |
|
|
Power Consumption: 11W |
|
Communication Ports |
Remote I/O (1771 blue terminal, max 57.6 kbps) |
|
|
RS-232 Programming Port |
|
Memory |
170 KB Application Memory (approx. 150 KB available) |
|
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
Protection Rating |
Front Panel: NEMA 4X / IP65 |
|
Dimensions (H × W × D) |
167 mm × 212 mm × 58 mm (6.58 in. × 8.35 in. × 2.28 in.) |
|
Weight |
1.2 kg (2.65 lbs) |
The front is a single resistive touch screen with high surface hardness. The entire screen is touch-sensitive and has no physical buttons, making operation very simple. Although the 5.5-inch gray-scale screen has a resolution of only 320×240, it is particularly clear when displaying text, numbers, and simple bar graphs. In workshops with a lot of dust and dim lighting, it is even more comfortable to view than color screens. The Allen Bradley 2711-T5A20L1 is very thin, only 58mm. It saves a lot of space when installed on the electrical cabinet door and weighs only 1.2kg. One person can easily pick it up and install it. The rear interface features a Remote I/O blue phoenix terminal, a 9-pin RS232 programming port, and a 24V DC power terminal. There is no USB or CF card slot. There are only two motherboards inside the machine, one display driver board and one CPU communication board. If they break down, they are easy to repair. Spare parts are still easy to purchase up to now.
The Allen Bradley 2711-T5A20L1 takes only 6 to 8 seconds from startup to entering the running screen, and the screen switching hardly feels any delay. The measured scanning cycle of Remote I/O communication is within 15-20ms. It can handle 150 tags and 30 screens without any lag. The touch accuracy is very high. With just a light tap of your finger, you can select a 1mm small button. It works even better when wearing cotton gloves. After the machine has been running for 10 years, the backlight will be a little dim, but when it is adjusted to the maximum brightness, the workshop can still be seen clearly during the day.
